Raspberry Pi 500+
Likes 0
Raspberry Pi 500 upgraded version with 16GB of RAM; integrated 256
GB SSD and better mechanical keyboard with RGB leds.
Name | Raspberry Pi 500+ |
|---|---|
| Release date | Sep. 25th 2025 |
| Core Type | Cortex-A76 64-bit quad-core (ARM v8) @2.4GHz |
| No. Of Cores | 4 |
| CPU Clock | 2.4 GHz |
| Ethernet | Yes Gigabit |
| USB | Yes 3x USB3.0 + 1x USB2.0 |
| Price | $ 200 |
| GPU | VideoCore VII @910 MHz |
| SOC Type | Broadcom BCM2712 |
| RAM | 16 GB LPDDR4X-4267 SDRAM |
| Built-in memory | 256 GB M.2 SSD |
| Wired Connectivity | |
| SATA Ports | No |
| HDMI port | Yes 2x micro HDMI |
| Analog Video Out | No |
| Analog Audio Out | No |
| Analog Audio In | No |
| SPI | Yes x2 |
| I2C | Yes |
| GPIO | Yes 40-pins |
| LCD Panel | No |
| SD/MMC | Yes |
| Serial | - |
| Camera | No |
| Interface PCIe | - M.2 socket |
| Wireless Connectivity (On-Board) | |
| Wi-Fi | Yes 2.4GHz / 5GHz 802.11ac |
| Bluetooth® | Yes 5.0 BLE |
| Dimensions | |
| Height | 123.06 mm |
| Width | 312 mm |
| Depth | 35.76 mm |
| Weight | 623 g |
| Power | |
| Power ratings | 5 A @5V |
| Power sources | USB-C |
| Power Over Ethernet | No |
| Other | |
| Power button | Yes |
| RTC | No |

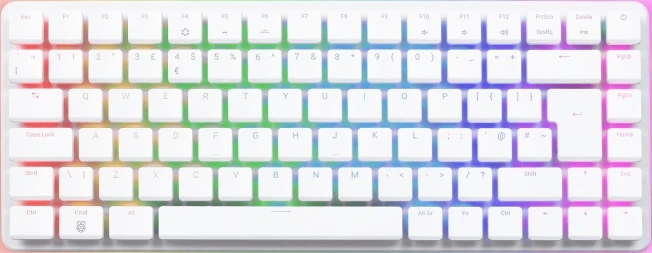

| Front view |  |
| Back view |  |
| Website | raspberrypi.com/... |
